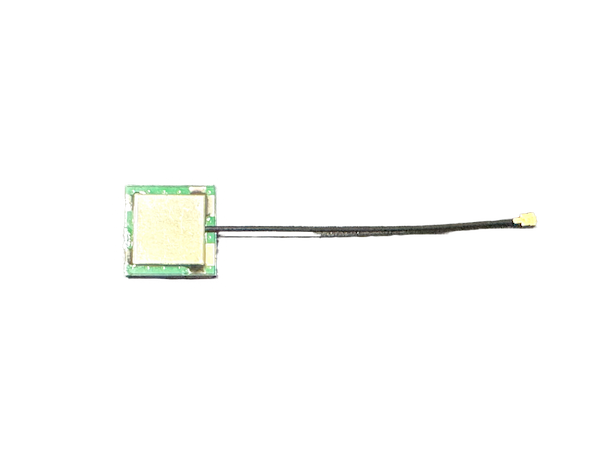

GNSS Active Patch Antenna (15 x 15 x 5.9m)
[Feature]
Front-End and Back-End SAW filters to be integrated with excellent rejection across all non-GNSS frequencies, protecting GNSS receiver from potential overdriving (or damage) caused by nearby transmitters.
Constellation: GPS/GLONASS/GALILEO/BeiDou
GNSS Frequencies: 1575.42 ± 1.023MHz / 1602.56 ± 4.0MHz
Dimension:15.0 x 15.0 x 5.9mm
High LNA Gain: 20dBi
Low Noise Figure: ≤2.0dB
Antenna Type: Active Ceramic Patch + Cable
Cable length(mm): 35.0mm, 0.81ø
Connector: IPEX MHF1 (U.FL Compatible)
Operational Temperature: -40 ~ +85°C
RoHS & Reach Compliant
[Application]
Telematics
In-Vehicles
Fleet Management
Small Cell
CPE
Gateway / Router
Edge Computing
Smart Grid
Asset Tracking
UAV/UVS/Drones
Autonomous Vehicle (or Robot)
ITS
Smart Transportation
Smart City
Timing
[Note]
Please feel free to reach out us if you have volumed (or special) project need. Our sales rep. will be happy to listen & help with accordingly.
